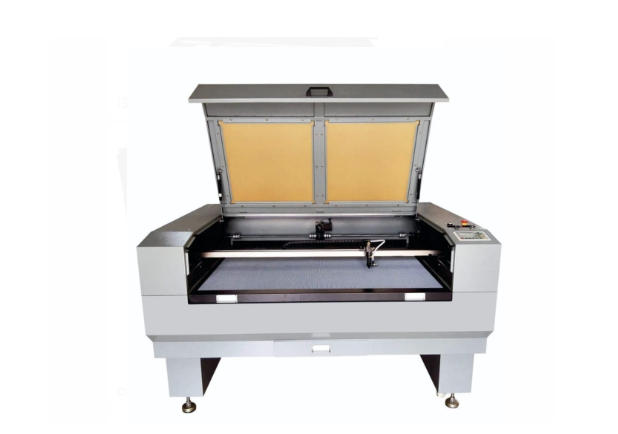

Laser Printing
Machine

Laser 6040/9060/1490


Features

  • 64 DSP high speed processor: Adopts 64 DSP high speed control system which highly improved the data processing speed and stability.
  • Support of USB and U disc: USB connect to the machine or U disc independently, which can use only computer to control many laser machine.
  • Storage function: Large storage function, which can store hundreds of files for offline operation.
  • Real time regulation: Users can regulate the laser power according to needs to improve the engraving effect.
  • Easy operation: Control Panel and software have both English and Chinese language so that satisfies the needs of different customers.
  • Rotary clamp for engraving cylinders (optional) : can engrave not even sheets, but also materials and cylinders such as pencil vase, flute, bottle and so on.


Applicable Materials

  • Non-metallic materials like cloth, leather, paper, ABS double color sheet, acrylic sheet, wood, glass, marble, ceramic tiles, plastic, rubber etc.

Technical Specification


  • Product model: -
  • 6040/9060/1490 (single head)
  • Laser power: -
  • 80W/100W/120W/150W
  • Laser type: -
  • Hermetic and detached CO2 laser tube
  • Cutting speed: -
  • 0-36000mm/min
  • Engraving speed: -
  • 0-64000mm/min
  • Resetting positioning accuracy: -
  • 0.01mm
  • Resolution ratio: -
  • 0.025 mm
  • Highest scanning precision: -
  • 2500 DPI
  • The smallest character: -
  • Character 2.0 mm* 2.0 mm, English 1.0 mm* 1.0 mm*
  • Power supply: -
  • 220V/50HZ
  • Moter: -
  • Lead shine & drive
  • Software supported: -
  • CorelDraw, Photoshop, AutoCAD etc.
  • Graphic format supported: -
  • PLT, DXF, BMP, CDR, AI, JPG, DST, DWG, TIFF, PSD
  • Whole power: -
  • <1000W
  • Operating temperature: -
  • 0”C-45*C
  • Operating humidity: -
  • 5-95% (Free of condensed water)
